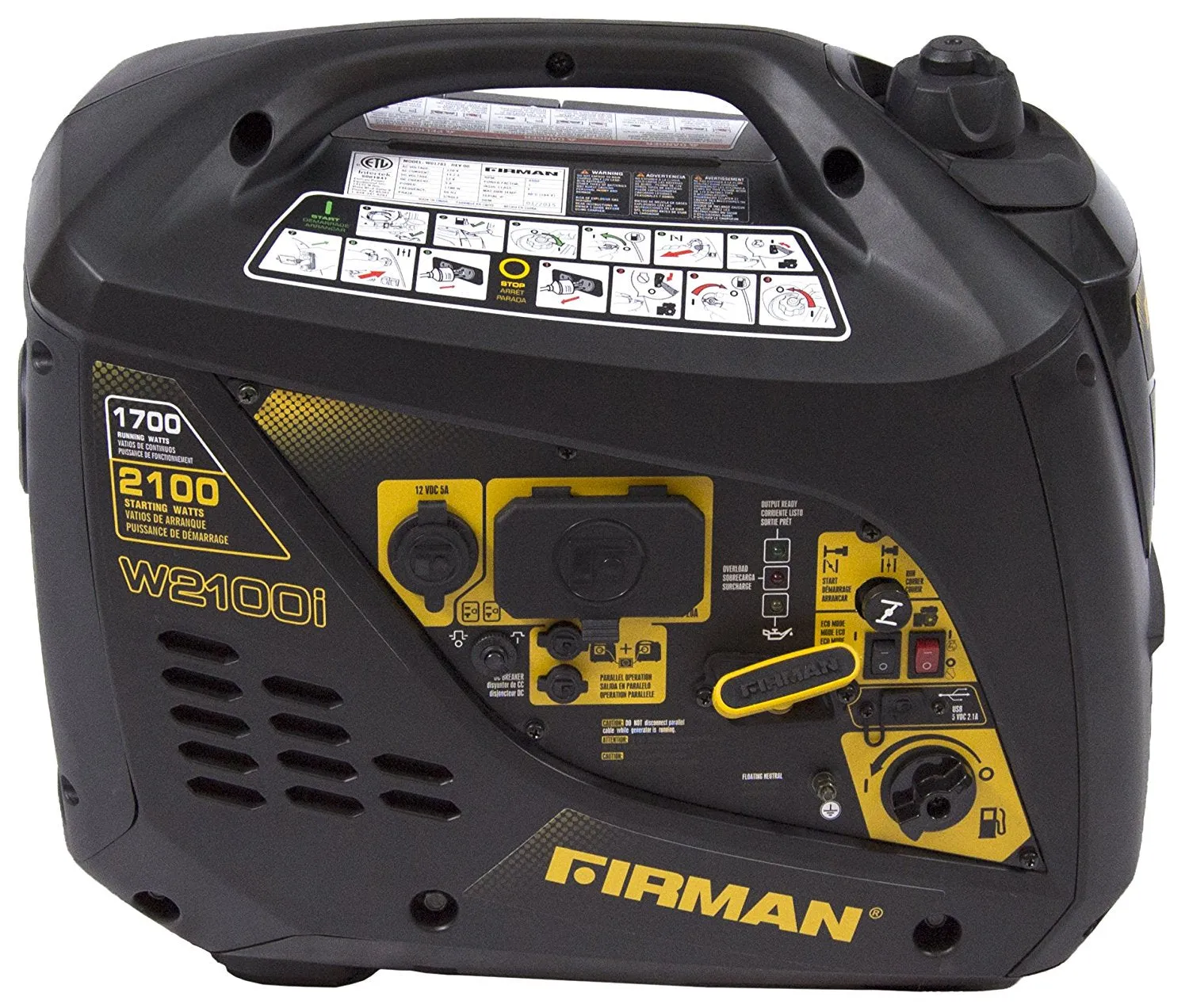

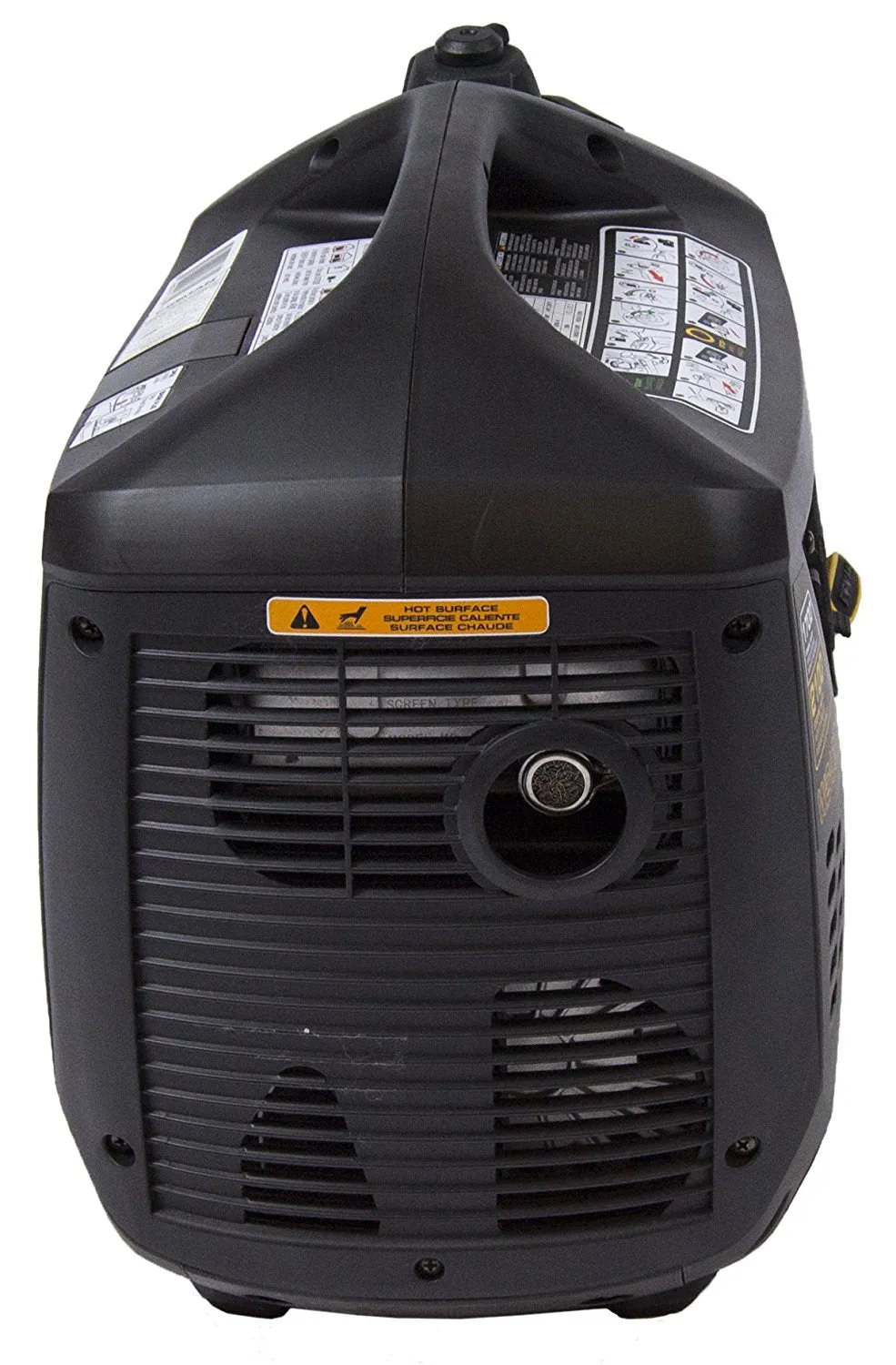

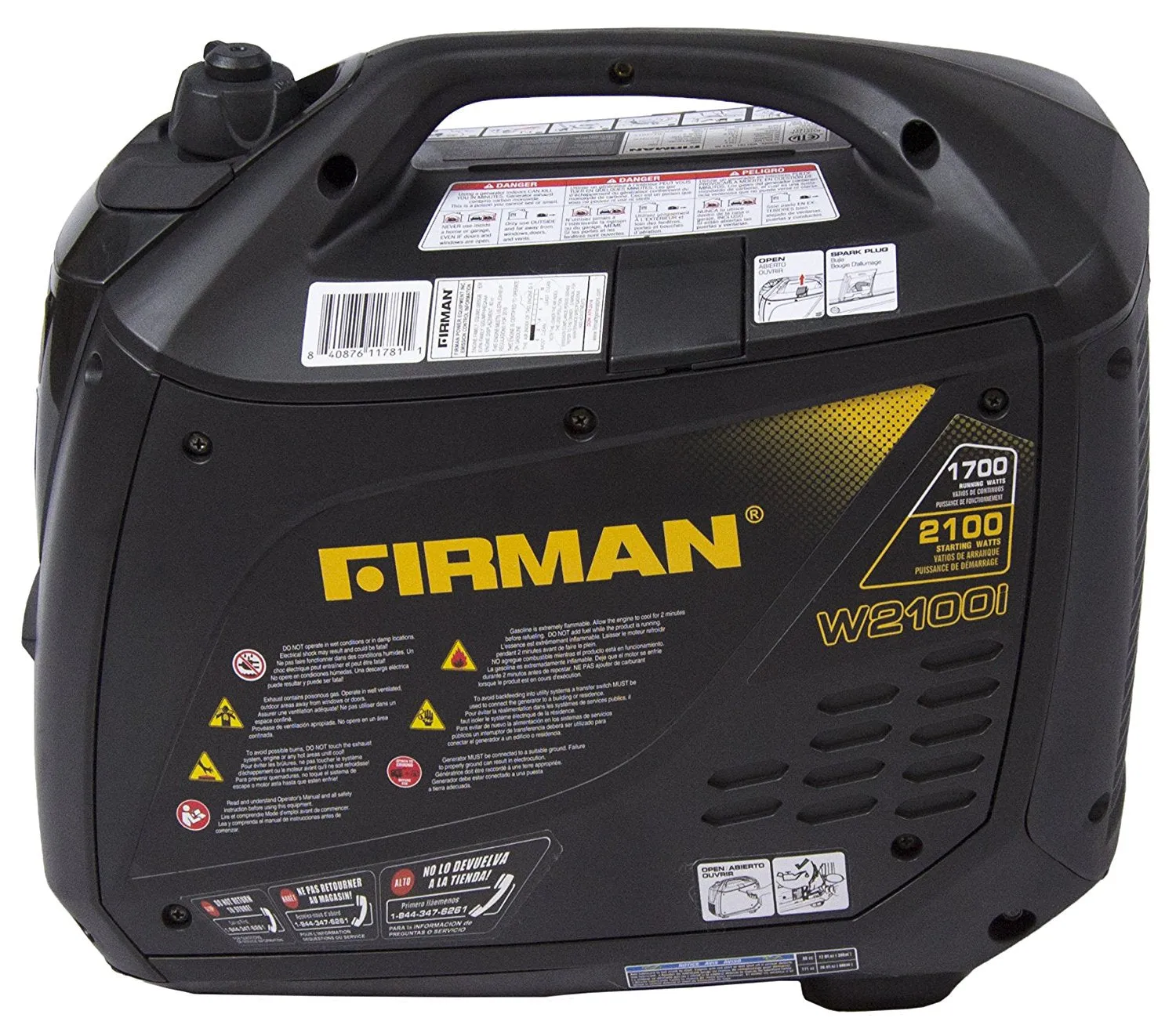

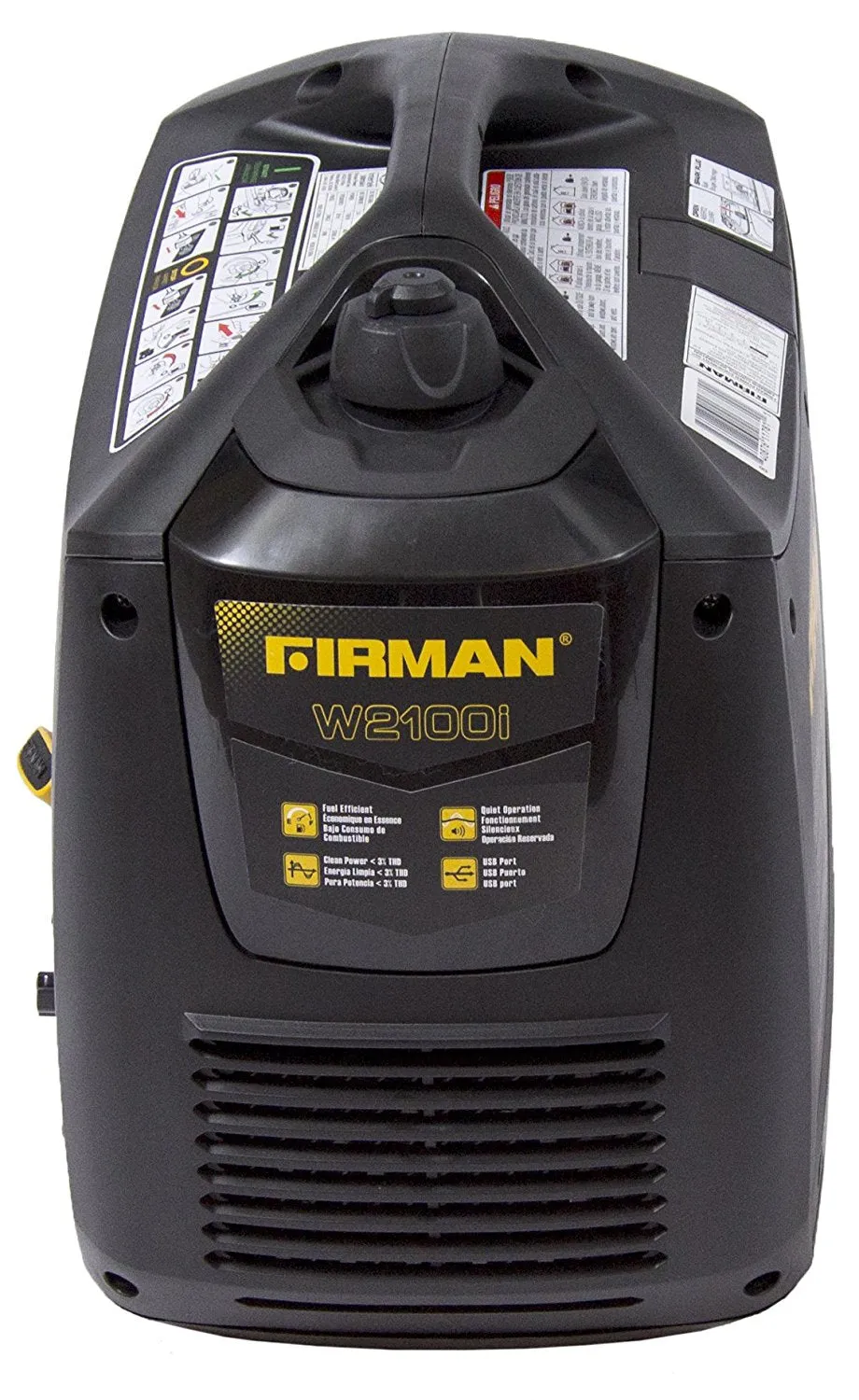

FIRMAN W01781 Inverter/Generator
The FIRMAN W01781 Inverter generator features 2100 starting watts and 1700 running watts. Power is supplied by our Max Pro Series 80cc FIRMAN engine which runs cool and efficient thanks to its Phoenix Fat Head Block. Our Whisper Series muffler keeps the W01781 running a quiet 59 decibels – well below the standards set by the National Parks Service, and our spark arrester has been approved by the USDA Forest Service. The .9 gallon fuel capacity provides a whopping 9 hours of run time. Starting is simple with the FIRMAN First pull, reliable recoil system.

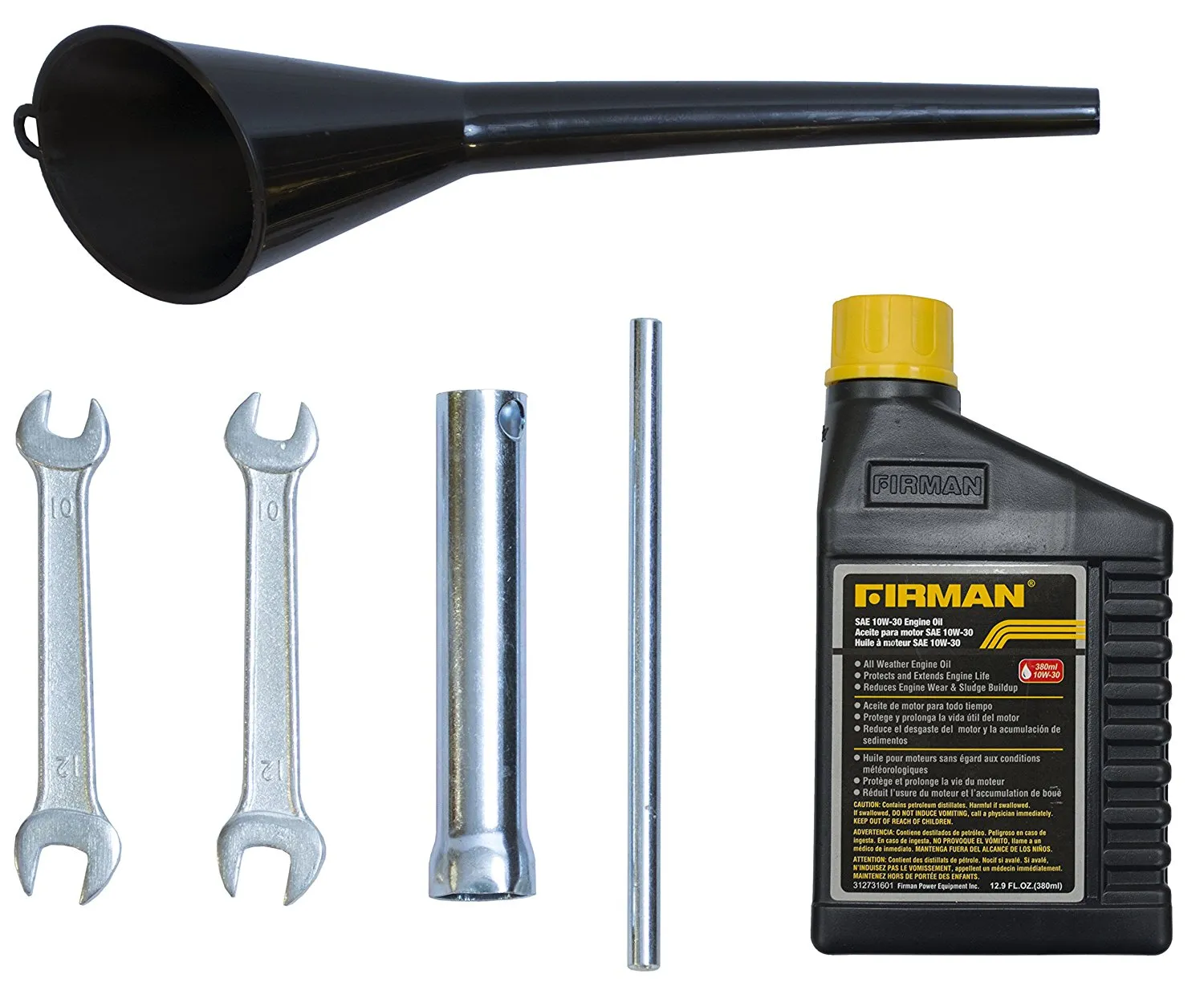

The FIRMAN digital automatic voltage regulator ensures clean, consistent power output from the FIRMAN Power Stream alternator. For the ultimate in portability the W01781 is less than 52 lbs with a built in ergonomic handle. Major touch points are all front and center for easy starting and use, power, choke, eco-mode and all receptacles are conveniently located for easy access. The durable, lightweight, powerful inverter is built for years of use. Just add gas! Everything you need comes standard in the box including: oil, funnel, owner’s manual and, spark plug wrench.
? Model – W01781
? Fuel Economy Mode – reduces fule consumption and promotes engine efficiency.
? The FIRMAN 0HV engine (Max-Pro Series) for longer life/higher performance/lower maintenance.
? Cast iron sleeved engine for long durability with automatic low oil shutdown protection.
? Largest tank in the industry with extended run-time (less re-fueling) with integrated fuel gauge for convenience.
? Quiet muffler (Whisper Series) with USDA FS certified spark arrester.

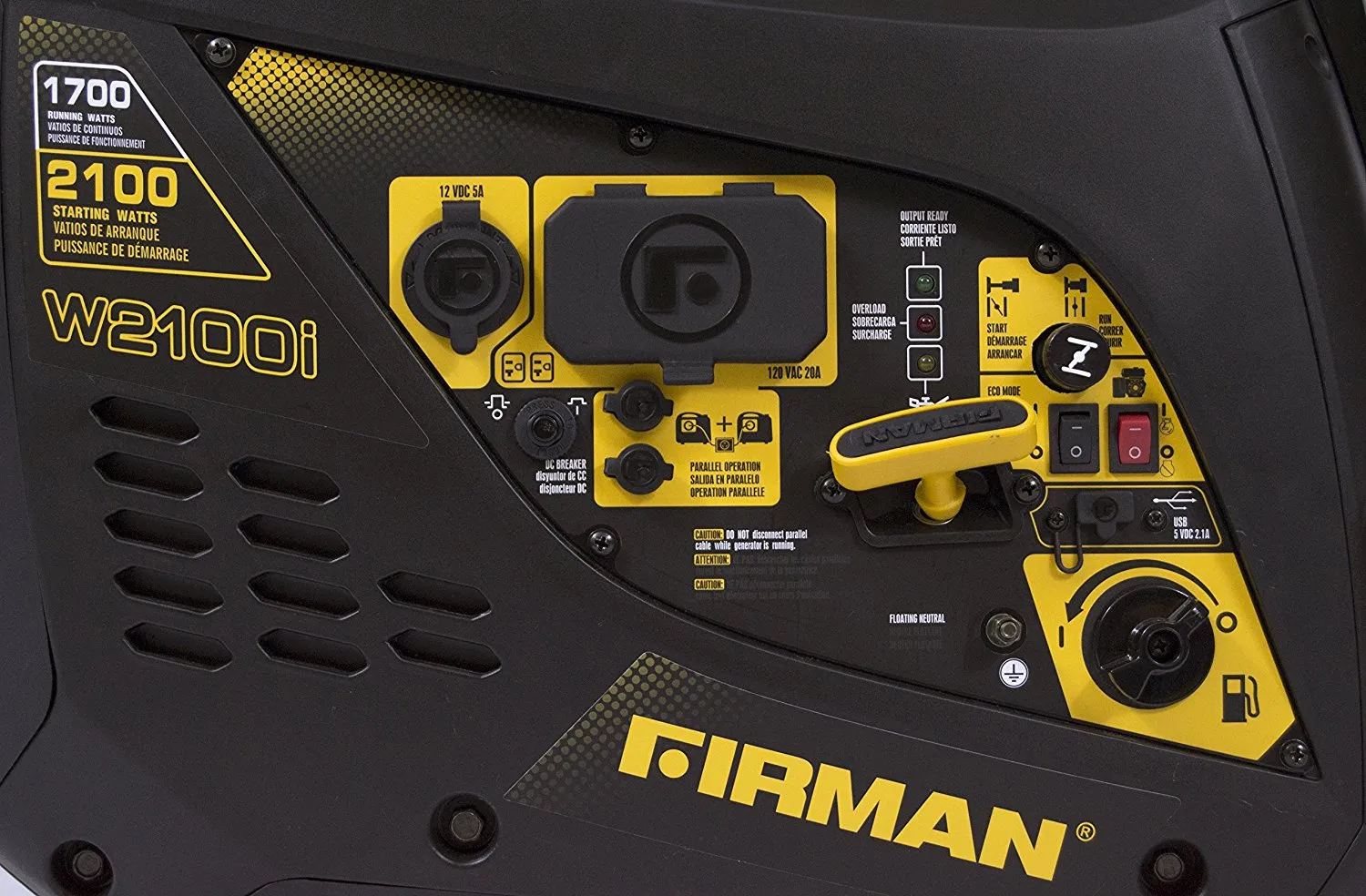

? Conveniently located multi-featured control panel with FIRMAN custom designed outlet cover protecting outlets from dirt, dust and debris.
? Durable compact roll-cage frame design with 1.2? steel tubing.
? Bonus accessories including engine oil funnel and tool kit.
? 3 year warranty
Model / Rev Level | W01781 / 00 |
---|---|
REGS | |
EPA (49 STATES) | YES |
CARB (50 STATES) | YES |
cETL (CANADA) | YES |
OUTPUT | |
Running (RATED) Watts – Gas | 1700 |
Starting (SURGE) Watts – Gas | 2100 |
Running (RATED) Watts – LP | |
Starting (SURGE) Watts – LP | |
AC Voltage (VOLTS) | 120 |
Frequency (Hz) | 60 |
Engine Displacement (cc) | 80 |
Recoil Start | YES |
Electric Start | |
Remote Start | |
Low Oil Shut Off | YES |
Power Stream Alternator | YES |
Cast Iron Sleeve | YES |
Fuel | Gas |
Excitation System | Magnet |
THD@Full Load | ?3% |
Runtime @ 50% LOAD | |
dB @ 7m @ 3/4 LOAD | |
Runtime @ 25% LOAD | 9 |
dB @ 7m @1/4 LOAD | ? |
CONTROL PANEL | |
5-20R 120V 20A Duplex | 1 |
5-20R 120V 20A SINGLE | |
5-20R 120V 20A Duplex GFCI | |
5-20R 120V 20A Duplex with Integrated USB 3.1A | |
L5-30R 120V 30A Twistlock | |
TT-30R 120V 30A RV | |
L14-30R 120V/240V 30A Twistlock | |
14-50R 120V/240V 50A | |
USB Outlet(5V 2.1A) | 1 |
DC Outlet 12V/TYPE | 1x Lighter Style |
Charging Port for Battery | |
Parallel Port | YES |
Outlet Cover | YES |
Voltage Selector | |
Engine ON/OFF Switch | YES |
Phoenix Fat Head Block | YES |
Battery Switch | |
Battery Power Restore Switch | |
Programming Button for Remote | |
Idle Control Switch | YES |
Fuel Selector | |
Power/Low Oil/Overload Indicator Lights | YES |
Voltmeter | |
FUEL SYSTEM | |
Tank Size (Gallon/Litre) | 0.9/3.4 |
Steel/Plastic | Plastic |
Fuel Gauge on Cap | |
Fuel Efficient Economy Mode | YES |
Bottle Opener | |
WHEEL KIT | |
Wheel(Size/Type/Color) | n/a |
Handle | Fixed Handle |
Foot Bracket | 4xRubber Isolator |
USDA FS Certified Spark Arrester | YES |
ACCESSORIES | |
Engine Oil (Bottle) | YES |
Oil Funnel | YES |
Tool Kit | SP wrench – Screw Driver |
12V Battery Cable | YES |
Remote Control | |
LPG Regulator ?1.5m? | |
Digital Automatic Voltage Regulator | YES |
Floater Charger for Battery | |
Cover | |
Remote Holder | |
Quick Oil Drain | |
“Power Cord (L14-30P to 6×5-20R -10AWG-18ft with circuit breakers)” |
|
PACKAGING | |
Warranty Residential / Commercial | 3years Ltd / 90days |
LXWXH (inch) (CARTON) | 21.7”x15”x18.3” |
NET WEIGHT (unit with wheel kit)(lbs) | 45.9 |
GROSS WEIGHT (unit with wheel kit, accessories, carton, foams, insert) (lbs) | 51.6 |
UPC | 840876117811 |
